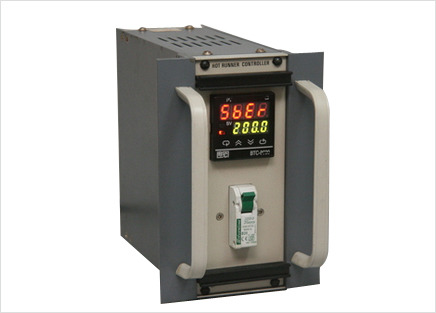

Hot Runner Temperature Controller
Product Description:
We are engaged in offering precision engineered assortment of Hot Runner Temperature Controller, which is used in several commercial applications. These highly efficient products are manufactured using advanced technology and quality tested materials to ensure long working life and utmost performance. Further, these can be customized as per the inputs provided by our valued clients. Specification of Hot Runner Temperature Controller are enlisted below:
Specification of 10 Zone Hot Runner Temperature Controller:
- Sensor - Thermocouple or RTD - specify
- Range - 0 °C to 600 °C
- Accuracy - ± .5% of FS.
- Indication Resolution - 1ï‚ °C or .1ï‚ °C – selectable.
- Power - 415 VAC - 3 phase + Neutral
- Output - SSR output / zone for accurate control.
- Humidity - 0 to 90 % RH non-condensing.
- Operation Temp. - 0 to + 50 °C.
- Size - Overall - width 455 mm / Height 270 mm / Depth 330 mm.
Other Features:
- Setting - All settings. By keypads.
- Soft Start - ramp to set point or power on.
- Controls (i) Auto tune PID or (ii) Fully settable PID parameters / zone.
- Sensor break indication & Protection.
- Automatic cold junction compensation for thermocouples.
- Independent 4 digit display for set point.
- Linearisation of sensors
- Independent 4 digit display for process Temperature.
