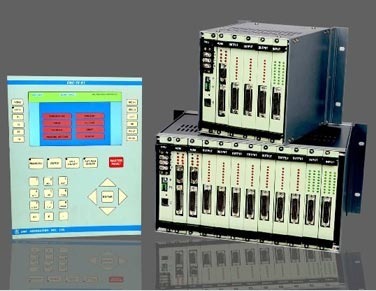

  • Programmable Logic Controller (PLC TS-01)

Programmable Logic Controller (PLC TS-01)

Programmable Logic Controller (PLC TS-01)



Specification for PLC TS-01:

  • Main card for control functions.
  • Size of PLC box:- 377(L) x177(H) x201(D) in mm.
  • Control action implemented in RTOS.
  • Sequence of operation: as per OEM requirement.
  • Counter pulse – From sequence of operation or External.
  • Counters: total count upto 99999999.
  • Hourly count:- 48 hour counters.
  • Day count:- 7 day counters.
  • Counting mode of timer:- down counting type.
  • Timer’s range:- 00.00 to 99.99 sec/min/hr.
  • Operation mode:- fully auto ,manual.
  • Supply voltage:- 24 VDC.
  • Operating temperature:- 0 to 500 c .
  • Rack mountable.

HMI (Keyboard & Display):


  • 7” TFT colour LCD display.
  • 800 X 480 pixels with touch screen.
  • Integrated Keyboard and Display (with touch screen) unit with 34 keys.
  • Parallel operation (Either Touch or Keyboard).
  • Keyboard dimension :- 220.0 x 283.0 mm.


Temperature Card:


  • Type of Thermocouple :- Fe/const.(J type).
  • Temperature range:- 0 to 600 0c.
  • Ambient compensation and linearization : automatic.
  • 24-bit ADC (Resolution).
  • 8 zones per card.
  • Open circuit indication.
  • Sensor break indication & Protection.
  • Controls:- (i) Advance PID control with Auto tune facility.
  • (ii) Fully settable PID parameters/zone.


Digital Input:


  • Each card has 24 optically isolated Inputs per card.
  • Input - 24 VDC.
  • Type - NPN/PNP.


Digital Output:


  • 8 output per card.
  • All outputs are optically isolated of drive capacity 24 v/2.5 Amps.
  • Fuse protected.
  • Type - NPN/PNP.


Other Details:


  • Compact Modular design with plug in cards.
  • User friendly feather touch front panel for easy Programming.
  • Front panel COLOUR LCD display.
  • Control access with analog & digital inputs.
  • Open and closed loop controls.
  • Integrated Temp. Control with adjustment.
  • Temp. Based interlock for screw safety.
  • Locking of set parameters through key.
  • Multilevel security models.
  • Built in cycle timer & counter.
  • High Immunity to disturbances.
  • Real Time Clock.
  • Diagnostic features for all inputs and outputs.
  • Log information.
  • Recipe storage.
