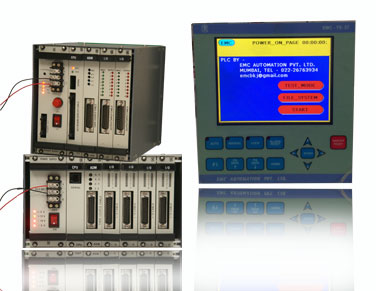

Programmable Logic Controller (PLC TS-57)

Specification for Programmable Logic Controller TS 57:


  • No. of Temperature Channels : Max. 8
  • No. of Control Output : Max. 32, 24V/2A Transistors.
  • Counters : Upto 99999999 counts,
  • Temperature Range : 0 to 400°C.
  • Type of Thermocouple : Fe/Const ‘J’ type or K type
  • Accuracy of Indication : ± 1°C, ± 1 digit.
  • No. of Timer : 50
  • No. of Limit Switches and Hand Control : Max. 32, 24 V DC type.Switches.
  • Control Accuracy : Typical 1%.
  • LCD Display : 5.7" Colour LCD Display.
  • Size of Hand Control Unit : 130 x 150 mm.
  • Timer’s Range : 00.00 to 99.99 second.
  • Control Action : Time proportional.
  • Ambient Compensation : Automatic.
  • Linearisation of Thermocouple : By software.
  • Accuracy and Repeatability : ± .01%.
  • Time Base : Quartz crystal.
  • Counting Mode of Timer : Down counting type.
  • Sequence of Operation : As per customers requirement.
  • Counter Pulse : Internally from timing sequence.
  • Operating Temperature : 0-50°C
  • Supply of Voltage : 24VDC ± 15%
  • Dimensions : Rack Mountable.
  • Operating Mode : Auto & Manual.
