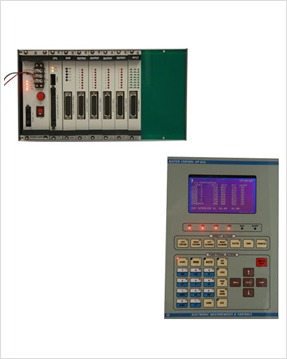

Specifications for Programmable Logic Controller HP-02:

LCD Display:

• No. of Dots : 240 x 128 dots
• View Area : 111mm x 64mm
• Dot Size : .4mm x .4mm
• Dot Pitch : 0.45mm x 0.45mm
• Operating Temperature : 0 to 50°C.
• Max. No. of Line : 14
• SMPS card for control unit.
• Temperature reading card for 8 zones.
• Main card for control function.
• Total outputs –32 Nos. including heatings.
• Total Inputs - 24
• 24V/12A power supply for valve & Limit Switch, Control unit - Optional
• Size of hand control unit 270 x 190 mm.
• Size of PLC box 377 x 177 x 201mm. (L) (H) (D)
• Counters : 1, Upto 99999999 counts. 48 counters of 4 digits hourly count.
• Accuracy of Indication : ±1°C ±1 digit.
• Control Accuracy : Typical 1%.
• Control Action : Time proportional.
• Temperature Range : 0 to 400°C.
• Ambient compensation : Automatic.
• Type of Thermocouple : Fe/Const. (J type)
• Linearisation of Thermocouple : By software.
• Timer’s Range : 000.0 to 999.9 seconds or 00.00 to 99.99 sec. Please Specify.
• Accuracy & Repeatability : .01%.
• Time Base : Quartz crystal.
• Counting Mode of Timer: Down counting type.
• Sequence of operation : As per customers requirement – please give detailed sequence.
• Counter Pulse : Internally from timing sequence.
• Operating Mode : Fully, Semi, Manual.
• Operating Temperature : 0-50°C.
